Gene Smith's Astronomy Tutorial The Astronomical Distance Scale |
Radar + Newton's laws determine the AU (Astronomical Unit = 149,597,900km ~ 93,000,000 miles).

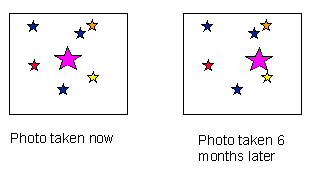

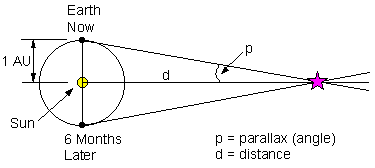

Parallax - Nearby Stars/500ly
Cluster H-R Diagrams - Milky Way Clusters/100,000ly
Cepheid Variable Stars - Nearby Galaxies/50Mly
Variable stars have proven to be one of the most reliable types of
"standard candles". Cepheid Variables are giant stars which have
instabilities in their envelopes that cause them to pulsate in size,
temperature and luminosity over timescales of a few days. Below is the
light curve (brightness as a function of time) for
Cephei, the variable star in the
constellation Cepheus
from which the stars derive their name. This
Mpeg animation shows the pulsation
of a cepheid.
The pulsations of Cepheids are very regular;
Cephei
has a period of pulsation (time between maxima or minima) of 5.366341
days. Furthermore the period is directly related to the

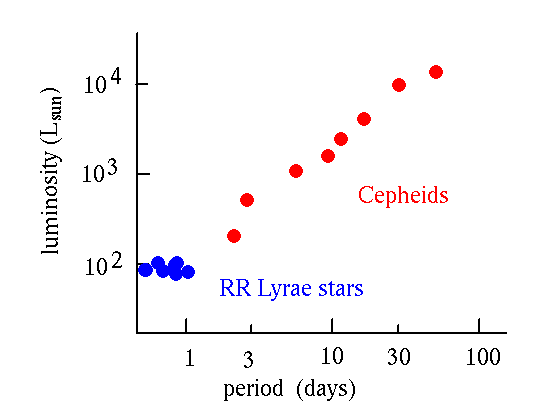

luminosity of the star as shown from the Period-Luminosity Relation.
This relationship was first discovered by Henrietta Leavitt at Harvard who noticed that Cepheids in the Magellanic Clouds hae a relationship between apparent brightness and period in the sense that brighter Cepheids have longer pulsation periods. Since all the stars in the Magellanic clouds are about the same distance, this relationship must be a relationship between luminosity and period as well. Cepheids exemplify the desirable characteristics of standard candles:
The doppler shift is a shift in wavelength or frequency of a wave due to relative motion of the source and receiver. If the source of waves is moving toward the receiver (or vice versa) each successive wavecrest is emitted a small distance closer to the receiver, the wavecrests will be closer together and the wave will be"squashed as shown below (shorter wavelengths & higher frequency). Similarly, if the source of waves is moving away from the receiver each successive wavecrest is emitted a small distance further away, the wavecrests will be further apart and the wave will be"stretched" (longer wavelengths, lower frequency). This is the phenomenon that causes the apparent shift in pitch (from higher approaching to lower receding) as a train passes by sounding its whistle.
Because shorter wavelength is toward the blue and longer wavelengths are toward the red for visible light, approaching velocities are said to produce "blueshifts" and receding velocities produce redshifts. for speeds small compared to the velocity of light the shift is given by:
From the work of Slipher in the early part of the 1900's astronomers knew that most of the spiral nebulae (galaxies) are receding from us. Edwin Hubble demonstrated that there was a linear relationship between distance and velocity for galaxies.
The data from Hubble's original velocity-distance relationship. Hubble's distance scale was in error by a factor of several, but his result was a most important one, demonstrating that the Universe is expanding and providing a means of estimating the distances to galaxies at the "edge of the Universe. Hubble's "law" is
with the modern value of the slope, H, called the Hubble Parameter (sometimes called Hubble Constant, but as we shall see it is not constant):
The precise value of the Hubble Parameter is a matter of very hot debate with different groups proposing values between 15 km/s/million l. y. to 25 km/s/million l. y. It is interesting to note that the units for the Hubble Parameter are 1/time and the current estimate corresponds to a time of about 15 billion years. What might this time correspont to?
